How to tune the parameters of an optimization

from time import time
import numpy as np
import scipy
import matplotlib.pyplot as plt
import qctrlvisualizer as qv
import boulderopal as bo

plt.style.use(qv.get_qctrl_style())

# Define optimization parameters.
duration = 1.1e-6  # s
omega_max = 5.0e6 * (2 * np.pi)  # Hz
delta_range = 15.0e6 * (2 * np.pi)  # Hz

# Define physical parameters of the quantum system.
interaction_strength = 24.0e6 * (2 * np.pi)  # Hz
local_shifts = np.zeros((6,))
local_shifts[[0, -1]] = -4.5e6 * (2 * np.pi)  # Hz

# Build the terms of the Hamiltonian.
h_omega_values = [0.5] * 2**6 * 6
h_omega_indices = []
h_delta_values = []
h_delta_indices = []
h_fixed_values = []
h_fixed_indices = []

for j in range(2**6):
    state = np.array([int(m) for m in np.binary_repr(j, width=6)])

    # Global shift term (big delta).
    n_exc = np.sum(state)  # Number of excited atoms.
    h_delta_values.append(-n_exc)
    h_delta_indices.append([j, j])

    # Omega term.
    for i in range(6):
        # Couple "state" and "state with qubit i flipped".
        h_omega_indices.append([j, j ^ 2 ** (5 - i)])

    # Local shift term (small deltas).
    h_fixed = -np.sum(local_shifts * state)

    # Interaction term.
    for d in range(1, 6):
        # Number of excited atoms at distance d.
        n_d = np.dot(((state[:-d] - state[d:]) == 0), state[:-d])
        h_fixed += interaction_strength * n_d / d**6

    if h_fixed != 0.0:
        h_fixed_values.append(h_fixed)
        h_fixed_indices.append([j, j])

H_omega = scipy.sparse.coo_matrix(
    (h_omega_values, np.array(h_omega_indices).T), shape=[2**6, 2**6]
)
H_delta = scipy.sparse.coo_matrix(
    (h_delta_values, np.array(h_delta_indices).T), shape=[2**6, 2**6]
)
H_fixed = scipy.sparse.coo_matrix(
    (h_fixed_values, np.array(h_fixed_indices).T), shape=[2**6, 2**6]
)

def get_recommended_k(segment_count, H_omega, H_delta, H_fixed):
    """
    Calculate the appropriate Krylov subspace dimension (k)
    for a given set of parameters, as required for the integration.
    This is obtained for the Hamiltonian with the largest spectral range.
    """
    graph = bo.Graph()

    maximal_range_hamiltonian = (
        omega_max * H_omega - delta_range * H_delta + H_fixed
    ).tocoo()

    # Calculate spectral range.
    spectral_range = graph.spectral_range(operator=maximal_range_hamiltonian)

    # Calculate the appropriate Krylov subspace dimension k.
    graph.estimated_krylov_subspace_dimension_lanczos(
        spectral_range=spectral_range,
        error_tolerance=1e-6,
        duration=duration,
        maximum_segment_duration=duration / segment_count,
        name="k",
    )

    result = bo.execute_graph(graph=graph, output_node_names="k")

    return result["output"]["k"]["value"]


def get_optimization_graph(segment_count, krylov_subspace_dimension):
    """
    Create an optimization graph for the requested number of segments.
    """
    graph = bo.Graph()

    # Define pulses.
    omega_segments = graph.real_optimizable_pwc_signal(
        segment_count=segment_count,
        minimum=0.0,
        maximum=omega_max,
        duration=duration,
        name="omega",
    )
    delta_segments = graph.real_optimizable_pwc_signal(
        segment_count=segment_count,
        minimum=-delta_range,
        maximum=delta_range,
        duration=duration,
        name="delta",
    )
    fixed_segment = graph.pwc_signal(
        values=np.array([1]), duration=duration, name="fixed"
    )

    shift_delta = graph.sparse_pwc_operator(signal=delta_segments, operator=H_delta)
    shift_omega = graph.sparse_pwc_operator(signal=omega_segments, operator=H_omega)
    shift_fixed = graph.sparse_pwc_operator(signal=fixed_segment, operator=H_fixed)

    # Define initial state
    initial_state = graph.fock_state(2**6, 0)

    # Create target state.
    idx_even = sum(2**n for n in range(0, 6, 2))
    idx_odd = sum(2**n for n in range(1, 6, 2))
    target_state = np.zeros([2**6])
    target_state[[idx_even, idx_odd]] = 1.0 / np.sqrt(2.0)

    # Evolve the initial state.
    evolved_state = graph.state_evolution_pwc(
        initial_state=initial_state,
        hamiltonian=graph.sparse_pwc_sum([shift_fixed, shift_omega, shift_delta]),
        krylov_subspace_dimension=krylov_subspace_dimension,
    )

    # Calculate state infidelity.
    infidelity = graph.state_infidelity(target_state, evolved_state, name="infidelity")

    return graph

results = {}
segment_counts = [2**n for n in range(4, 10)]
calculation_times = []

# Run optimizations.
for segment_count in segment_counts:
    krylov_subspace_dimension = get_recommended_k(
        segment_count, H_omega, H_delta, H_fixed
    )
    graph = get_optimization_graph(segment_count, krylov_subspace_dimension)
    time_reference = time()
    results[segment_count] = bo.run_optimization(
        graph=graph,
        cost_node_name="infidelity",
        output_node_names=["infidelity"],
        optimization_count=1,
        max_iteration_count=300,
        cost_history_scope="HISTORICAL_BEST",
    )
    calculation_times.append(time() - time_reference)

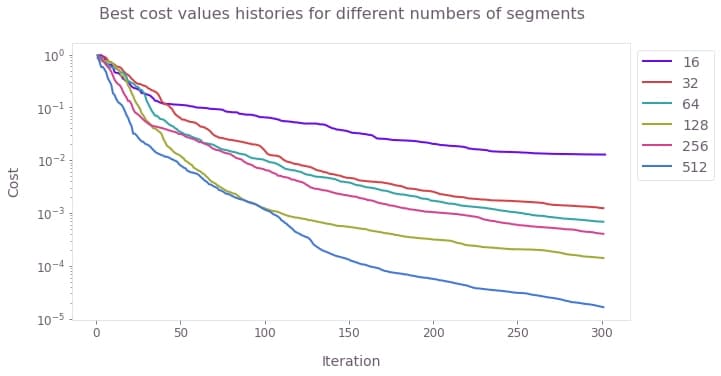

# Plot history of best costs.
qv.plot_cost_histories(
    [
        result["cost_history"]["historical_best"][0]
        for segment_count, result in results.items()
    ],
    labels=[str(n) for n in segment_counts],
    y_axis_log=True,
)
plt.suptitle("Best cost values histories for different numbers of segments")
plt.show()

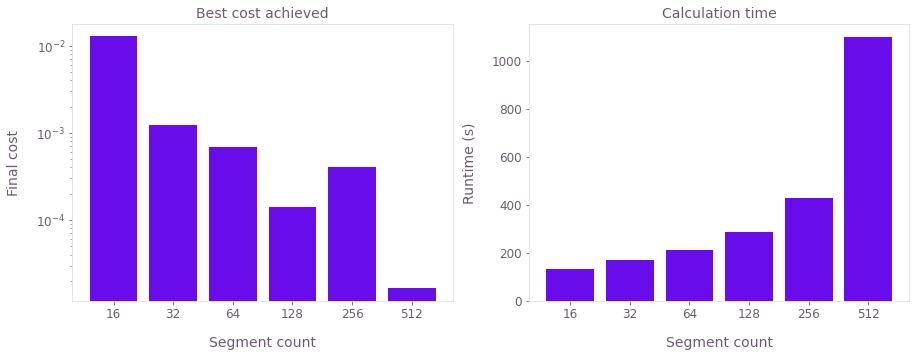

# Plot final costs and calculation times.

costs = [result["cost"] for result in results.values()]

fig, axes = plt.subplots(1, 2, figsize=(15, 5))
labels = [str(s) for s in segment_counts]
axes[0].bar(labels, costs, log=True)
axes[1].bar(labels, calculation_times)

axes[0].set_title("Best cost achieved")
axes[0].set_xlabel("Segment count")
axes[0].set_ylabel("Final cost")

axes[1].set_title("Calculation time")
axes[1].set_xlabel("Segment count")
axes[1].set_ylabel("Runtime (s)")

plt.show()
