Design error-detectable entangling gates for superconducting resonators in dual-rail encoding
Robust
Boulder Opal is a versatile tool for the numerical optimization of controls in quantum systems. It provides a flexible optimization engine that can be applied to both unitary operations and individual states and, furthermore, allows for the straightforward incorporation of arbitrary additional objectives such as the robustness of the pulses. With Boulder Opal, nonlinearities and complex interactions of the various system components can be easily accounted for, which not only introduce coherent errors, but also open up new possibilities for the error-robust processing of quantum information.
Tsunoda et al. have proposed a scheme to implement entangling gates on bosonically encoded qubits using a transmon ancilla that makes first-order errors detectable. On the path towards fault-tolerant quantum computation, dual-rail qubits are particularly promising as they leverage the intrinsic noise bias of superconducting cavities to allow for a favorable error hierarchy while requiring only a single excitation per logical qubit. A logical dual-rail qubit is encoded by a photon in one of two cavity modes,
In this application note, we demonstrate how Boulder Opal can be used to design an optimal robust pulse sequence to execute an error-detectable
- Performing model-based control optimizations for the individual gates constituting the logical

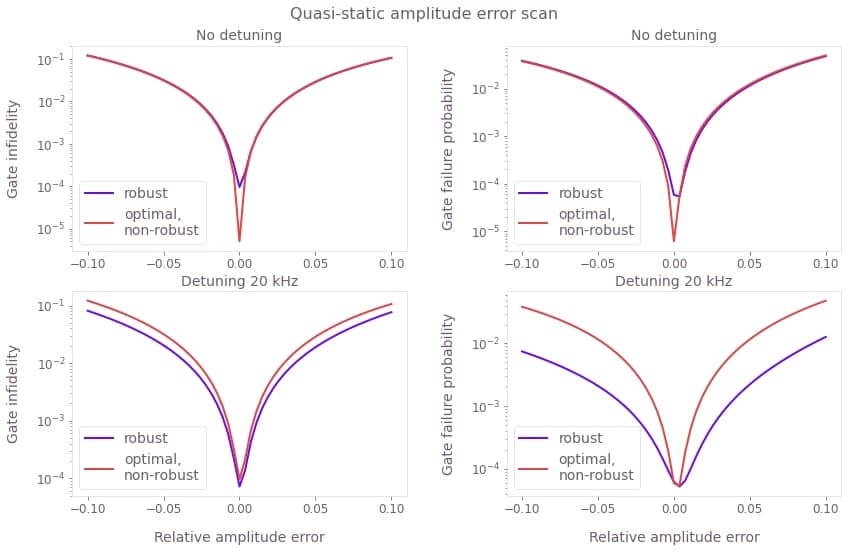

gate. - Adding robustness against pulse shaping errors as an objective in the optimizations.

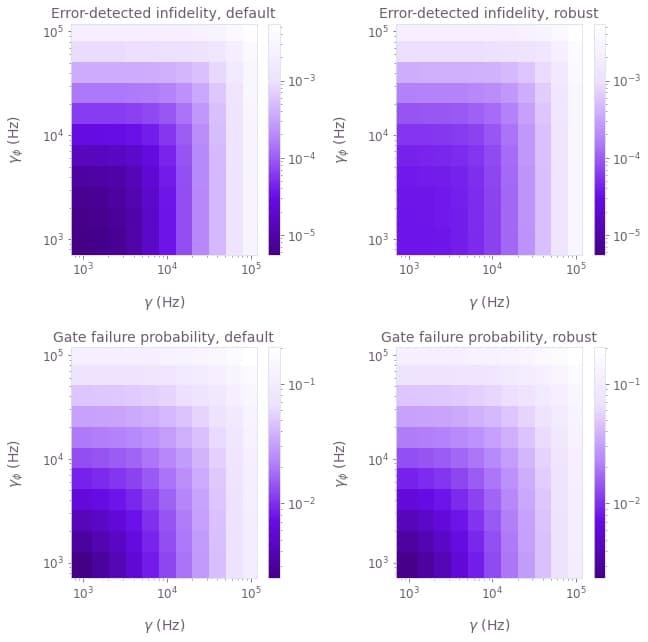

- Validating the performance of the pulse sequences in an open system.
Imports and initialization
import jsonpickle
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
import qctrlvisualizer as qv
import boulderopal as bo
bo.cloud.set_verbosity("QUIET")
plt.style.use(qv.get_qctrl_style())Gate construction in the dual-rail cavity system with a transmon ancilla
While two dual-rail encoded qubits require, in principle, four physical cavity modes, it suffices to facilitate an interaction between two of them to realize a two-qubit gate. Thus, the system we consider consists of two superconducting cavities
The Hamiltonian
To construct an error-detectable

which enables the detection of first-order errors when not measuring the ancilla in the ground state at the end of the protocol. This is of interest for near-term protocols relying on postselection as well as for an embedding into error correction codes. Parametrization of the logical two-qubit gate can be easily implemented via the corresponding ancilla rotation. Together with single-qubit rotations mediated by a beamsplitter interaction between the two cavities belonging to the same logical qubit, the
Designing optimal control pulses for the individual gates
To find optimal pulses realizing the error-detectable
We start by defining all relevant parameters, states, and operators. As an example, in the following, we focus on the case
# Gate parameters.
theta = np.pi / 2 # Gate angle
gate_duration_h = 100e-9 # s # Duration of the Hadamard gate.
gate_duration_c_parity = 500e-9 # s # Duration of the controlled joint parity gate.
gate_duration_rx = 40e-9 # s # Duration of the RX gate.
gate_duration_tot = 2 * gate_duration_h + 2 * gate_duration_c_parity + gate_duration_rx
# System and coupling parameters.
chi = (
-2 * np.pi * 2e6
) # rad.Hz # dispersive coupling between cavity A and transmon ancilla
k_a = 2 * np.pi * 2e3 # rad.Hz # self-Kerr of cavity A
k_b = 2 * np.pi * 2e3 # rad.Hz # self-Kerr of cavity B
chi_f_prime = 2 * np.pi * 2e3 # rad.Hz
chi_e_prime = 2 * np.pi * 1.125e3 # rad.Hz
chi_ab = 2 * np.pi * 100 # rad.Hz
# Simulation and optimization parameters.
cavity_dim = 3 # Cavity dimension.
transmon_dim = 3 # Transmon dimension.
max_rabi_rate_c = 2 * np.pi * 5e6 # rad.Hz # Maximum cavity drive.
max_rabi_rate_t = 2 * np.pi * 30e6 # rad.Hz # Maximum transmon drive.
optimizer_variable_count = 64
segment_count = 128
sinc_cutoff_frequency_drives = 2 * np.pi * 4e7 # rad.Hz
# Error ranges for robust optimization.
sample_count_optimization = 5
amplitude_errors_optimization = np.linspace(
-0.025, 0.025, num=sample_count_optimization
)
# Gate we ultimately want to implement.
rzz = np.diag(np.exp(1j * theta / 2 * np.array([-1, 1, 0, 1, -1, 0, 0, 0, 0])))
rzz_tot = np.kron(rzz, np.eye(transmon_dim))
# Hadamard gate on the transmon ancilla.
h = np.array([[1, 0, 1], [0, 0, 0], [1, 0, -1]]) / np.sqrt(2)
h_tot = np.kron(np.eye(cavity_dim), np.kron(np.eye(cavity_dim), h))
# Ancilla-controlled joint parity operation on the cavities.
c_parity = np.eye(cavity_dim * cavity_dim * transmon_dim)
c_parity[5, 5], c_parity[11, 11], c_parity[17, 17], c_parity[23, 23] = -1, -1, -1, -1
# RX gate on the transmon ancilla.
rx = np.array(
[
[np.cos(theta / 2), 0, -1j * np.sin(theta / 2)],
[0, 0, 0],
[-1j * np.sin(theta / 2), 0, np.cos(theta / 2)],
]
)
rx_tot = np.kron(np.eye(cavity_dim), np.kron(np.eye(cavity_dim), rx))
# Cardinal cavity states.
cardinal_states_c = [
np.array([1, 0, 0]),
np.array([0, 1, 0]),
np.array([1, 1, 0]) / np.sqrt(2),
np.array([1, -1, 0]) / np.sqrt(2),
np.array([1, 1j, 0]) / np.sqrt(2),
np.array([1, -1j, 0]) / np.sqrt(2),
]
# Pauli matrices for the transmon.
pauli_matrices = [
np.array([[0, 0, 1], [0, 0, 0], [1, 0, 0]]),
np.array([[0, 0, -1j], [0, 0, 0], [1j, 0, 0]]),
np.array([[1, 0, 0], [0, 0, 0], [0, 0, -1]]),
]
def create_system_operators(graph, dim_c, dim_t):
"""
Create the required system operators for the two cavities
(of dimension dim_c) and the transmon ancilla (of dimension dim_t).
"""
a = graph.embed_operators(
(graph.annihilation_operator(dim_c), 0), [dim_c, dim_c, dim_t]
)
n_a = graph.adjoint(a) @ a
b = graph.embed_operators(
(graph.annihilation_operator(dim_c), 1), [dim_c, dim_c, dim_t]
)
n_b = graph.adjoint(b) @ b
t = graph.embed_operators(
(np.array([[0, 0, 1], [0, 0, 0], [0, 0, 0]]), 2), [dim_c, dim_c, dim_t]
)
n_t = graph.adjoint(t) @ t
t_z = graph.embed_operators((np.diag([1, 0, -1]), 2), [dim_c, dim_c, dim_t])
# Operators including transmon level e.
t_e = graph.embed_operators(
(graph.annihilation_operator(dim_t), 2), [dim_c, dim_c, dim_t]
)
n_t_e = graph.adjoint(t_e) @ t_e
return (a, n_a, b, n_b, t, n_t, t_z, t_e, n_t_e)For the optimization, we start with the gates that are independent of the specific rotation angle
As a first step, we optimize the transmon pulses that implement the Hadamard gates. In addition to the infidelity of the realized and the target operation, we penalize deviations from the "equal-latitude condition". Adhering to this condition, which corresponds to the latitude of the transmon state in the
Note that some Boulder Opal functions support a run_async flag, that when set to True enables to submit jobs asynchronously.
Depending on your Boulder Opal plan, these jobs may run concurrently on different machines and save you time.
For more details on asynchronous job submission, refer to this user guide.
def optimize_hadamard(initial_state_t, run_async, robust=False):
graph = bo.Graph()
# Optimizable transmon drive.
drive_t = graph.complex_optimizable_pwc_signal(
segment_count=optimizer_variable_count,
duration=gate_duration_h,
maximum=max_rabi_rate_t,
)
drive_t = graph.filter_and_resample_pwc(
pwc=drive_t,
kernel=graph.sinc_convolution_kernel(sinc_cutoff_frequency_drives),
segment_count=segment_count,
duration=gate_duration_h,
)
drive_t = drive_t * graph.signals.cosine_pulse_pwc(
duration=gate_duration_h,
segment_count=segment_count,
amplitude=1.0,
flat_duration=gate_duration_h - 10e-9,
)
drive_t.name = "drive_t"
# Optimizable detuning for the transmon.
delta_t = graph.optimizable_scalar(
lower_bound=2 * chi, upper_bound=-2 * chi, name="delta_t"
)
# Setup of the Hamiltonian.
_, n_a, _, n_b, t, n_t, t_z, _, n_t_e = create_system_operators(
graph, cavity_dim, transmon_dim
)
h_drift = (
-chi / 2 * n_a @ t_z
- k_a / 2 * (n_a @ n_a - n_a)
- k_b / 2 * (n_b @ n_b - n_b)
+ chi_f_prime * (n_a @ n_a - n_a) @ n_t
+ chi_e_prime * (n_a @ n_a - n_a) @ (n_t_e - 2 * n_t)
+ chi_ab * n_a @ n_b
)
h_drive = graph.hermitian_part(drive_t * graph.adjoint(t)) + delta_t * n_t
hamiltonian = h_drift + h_drive
# Infidelity of the target unitary operation and the operation we implement.
target = graph.target(h_tot)
if robust:
noise_operators = [graph.hermitian_part(drive_t * graph.adjoint(t))]
else:
noise_operators = None
infidelity = graph.infidelity_pwc(
hamiltonian, target, noise_operators=noise_operators, name="infidelity"
)
# Construction of the latitude cost:
# Transmon states during the gate.
initial_states = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t[:, None],
]
),
(len(cardinal_states_c) ** 2, 1, -1, 1),
)
sample_times = np.linspace(0, gate_duration_h, segment_count)
unitaries = graph.time_evolution_operators_pwc(
hamiltonian=hamiltonian, sample_times=sample_times
)[None]
evolved_states = (unitaries @ initial_states)[..., 0]
states_t = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states, evolved_states),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)

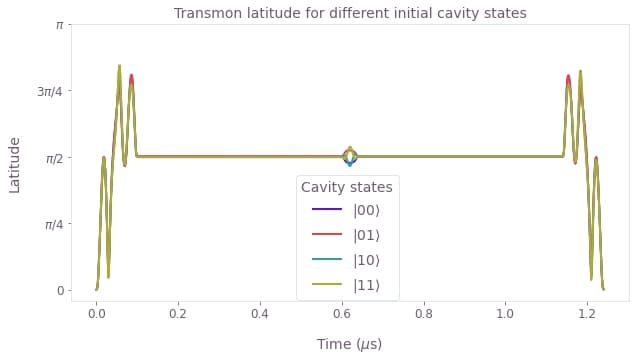

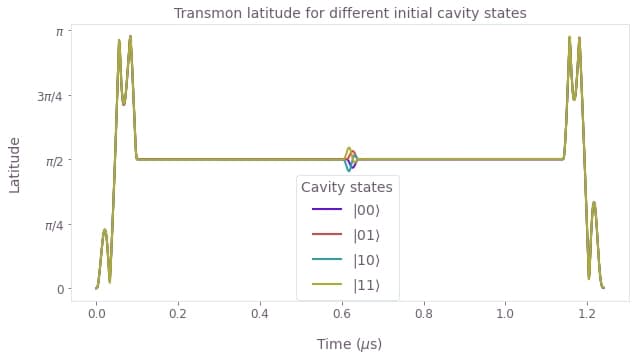

# Transmon latitude and deviation for different initial cavity states.
v = graph.real(
graph.density_matrix_expectation_value(
density_matrix=states_t, operator=np.array(pauli_matrices)[:, None, None]
)
)
latitude = graph.arccos(v[2] / graph.sqrt(graph.sum(v**2, axis=0)), name="latitude")
latitude_cost = graph.sum(
[
graph.abs(latitude[i + 1] - latitude[i])
for i in range(len(cardinal_states_c) ** 2 - 1)
]
)
cost = infidelity + 1e-5 * latitude_cost
cost.name = "cost"
return bo.run_optimization(
graph=graph,
cost_node_name="cost",
output_node_names=["drive_t", "delta_t", "infidelity"],
optimization_count=10,
run_async=run_async,
)
initial_state_t_h_1 = np.array([1, 0, 0])
initial_state_t_h_2 = np.array([1, 0, 1]) / np.sqrt(2)
# First Hadamard gate.
job_h_1 = optimize_hadamard(initial_state_t_h_1, run_async=True)
# Second Hadamard gate.
job_h_2 = optimize_hadamard(initial_state_t_h_2, run_async=True)
result_h_1 = job_h_1.get_result()
result_h_2 = job_h_2.get_result()
print("Optimized first Hadamard gate.")
print(f"Cost: {result_h_1['cost']:.3e}")
print(f"Gate infidelity: {result_h_1['output']['infidelity']['value']:.3e}\n")
print("Optimized second Hadamard gate.")
print(f"Cost: {result_h_2['cost']:.3e}")
print(f"Gate infidelity: {result_h_2['output']['infidelity']['value']:.3e}")Optimized first Hadamard gate.
Cost: 1.747e-05
Gate infidelity: 1.955e-06
Optimized second Hadamard gate.
Cost: 1.107e-05
Gate infidelity: 2.105e-06
After finding high-fidelity pulses for the Hadamard gates, in the next step, we optimize the ancilla-controlled joint parity gate that applies the operation
def optimize_c_parity(run_async: bool, robust=False):
graph = bo.Graph()
# Optimizable cavity drive for the beamsplitter interaction.
drive_c = graph.complex_optimizable_pwc_signal(
segment_count=2 * optimizer_variable_count,
duration=gate_duration_c_parity,
maximum=max_rabi_rate_c,
initial_values=np.sqrt(3) / 2 * chi * np.ones(2 * optimizer_variable_count),
)
drive_c = graph.filter_and_resample_pwc(
pwc=drive_c,
kernel=graph.sinc_convolution_kernel(sinc_cutoff_frequency_drives),
segment_count=2 * segment_count,
duration=gate_duration_c_parity,
)
drive_c = drive_c * graph.signals.cosine_pulse_pwc(
duration=gate_duration_c_parity,
segment_count=2 * segment_count,
amplitude=1.0,
flat_duration=gate_duration_c_parity - 10e-9,
)
drive_c.name = "drive_c"
# Optimizable detuning for the beamsplitter interaction.
delta_c = graph.optimizable_scalar(
lower_bound=2 * chi,
upper_bound=-2 * chi,
initial_values=2 * np.pi * 1e6,
name="delta_c",
)
# Setup of the Hamiltonian.
a, n_a, b, n_b, _, n_t, t_z, _, n_t_e = create_system_operators(
graph, cavity_dim, transmon_dim
)
h_drift = (
-chi / 2 * n_a @ t_z
- k_a / 2 * (n_a @ n_a - n_a)
- k_b / 2 * (n_b @ n_b - n_b)
+ chi_f_prime * (n_a @ n_a - n_a) @ n_t
+ chi_e_prime * (n_a @ n_a - n_a) @ (n_t_e - 2 * n_t)
+ chi_ab * n_a @ n_b
)
if robust:
amplitude_error_pwc = graph.constant_pwc(
amplitude_errors_optimization,
duration=gate_duration_c_parity,
batch_dimension_count=1,
)
h_drive = (1 + amplitude_error_pwc) * graph.hermitian_part(
drive_c * graph.adjoint(a) @ b
) + delta_c * n_a
else:
h_drive = graph.hermitian_part(drive_c * graph.adjoint(a) @ b) + delta_c * n_a
hamiltonian = h_drift + h_drive
# Initial and target states.
initial_state_t = np.array([1, 0, 1]) / np.sqrt(2)
initial_states = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t[:, None],
]
),
(len(cardinal_states_c) ** 2, 1, 1, -1, 1),
)
target_states = (c_parity @ initial_states)[..., 0, :, 0]
# Time evolution.
sample_times = np.linspace(0, gate_duration_c_parity, 2 * segment_count)
unitaries = graph.time_evolution_operators_pwc(
hamiltonian=hamiltonian, sample_times=sample_times
)[None]
evolved_states = unitaries @ initial_states
# Infidelity of the target states and the evolved states.
infidelity = graph.sum(
graph.state_infidelity(evolved_states[..., -1, :, 0], target_states)
) / (len(cardinal_states_c) ** 2)
if robust:
infidelity /= sample_count_optimization
infidelity.name = "infidelity"
# Construction of the latitude cost:
# Transmon states during the gate.
if robust:
no_error_idx = int((sample_count_optimization - 1) / 2)
else:
no_error_idx = 0
evolved_states = evolved_states[:, no_error_idx, :, :, 0]
states_t = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states, evolved_states),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)
# Transmon latitude and deviation from equator for different initial cavity states.
v = graph.real(
graph.density_matrix_expectation_value(
density_matrix=states_t, operator=np.array(pauli_matrices)[:, None, None]
)
)
latitude = graph.arccos(v[2] / graph.sqrt(graph.sum(v**2, axis=0)), name="latitude")
latitude_cost = graph.sum(graph.abs(latitude - np.pi / 2)) / (
len(cardinal_states_c) ** 2
)
cost = infidelity + 1e-2 * latitude_cost
cost.name = "cost"
return bo.run_optimization(
graph=graph,
cost_node_name="cost",
output_node_names=["drive_c", "delta_c", "infidelity"],
optimization_count=1,
run_async=run_async,
)
result_c_parity = optimize_c_parity(run_async=False)
print("Optimized ancilla-controlled joint parity gate.")
print(f"Cost: {result_c_parity['cost']:.3e}")
print(f"Gate infidelity: {result_c_parity['output']['infidelity']['value']:.3e}")Optimized ancilla-controlled joint parity gate.
Cost: 1.494e-06
Gate infidelity: 1.382e-06
Having optimized the pulses for the fixed gates in the sequence, we turn to the parametrized transmon rotation. In our example of a logical
def optimize_rx(result_h_1, result_h_2, result_c_parity, run_async, robust=False):
graph = bo.Graph()
# Optimizable transmon drive.
drive_t = graph.complex_optimizable_pwc_signal(
segment_count=optimizer_variable_count,
duration=gate_duration_rx,
maximum=max_rabi_rate_t,
)
drive_t = graph.filter_and_resample_pwc(
pwc=drive_t,
kernel=graph.sinc_convolution_kernel(sinc_cutoff_frequency_drives),
segment_count=segment_count,
duration=gate_duration_rx,
)
drive_t = drive_t * graph.signals.cosine_pulse_pwc(
duration=gate_duration_rx,
segment_count=segment_count,
amplitude=1.0,
flat_duration=gate_duration_rx - 10e-9,
)
drive_t.name = "drive_t"
# Optimizable detuning for the transmon.
delta_t = graph.optimizable_scalar(
lower_bound=-max_rabi_rate_t / 2,
upper_bound=max_rabi_rate_t / 2,
name="delta_t",
)
# Setup of the Hamiltonian.
a, n_a, b, n_b, t, n_t, t_z, _, n_t_e = create_system_operators(
graph, cavity_dim, transmon_dim
)
h_drift = (
-chi / 2 * n_a @ t_z
- k_a / 2 * (n_a @ n_a - n_a)
- k_b / 2 * (n_b @ n_b - n_b)
+ chi_f_prime * (n_a @ n_a - n_a) @ n_t
+ chi_e_prime * (n_a @ n_a - n_a) @ (n_t_e - 2 * n_t)
+ chi_ab * n_a @ n_b
)
h_drive = graph.hermitian_part(drive_t * graph.adjoint(t)) + delta_t * n_t
hamiltonian_rx = h_drift + h_drive
# Infidelity of the target unitary operation and the operation we implement.
target = graph.target(rx_tot)
infidelity_rx = graph.infidelity_pwc(hamiltonian_rx, target, name="infidelity_rx")
# Construction of the latitude cost:
# Calculation of the transmon states during the RX gate.
initial_state_t_rx = np.array([1, 0, 1]) / np.sqrt(2)
initial_states_rx = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t_rx[:, None],
]
),
(len(cardinal_states_c) ** 2, 1, -1, 1),
)
initial_states_rx = c_parity @ initial_states_rx
sample_times_rx = np.linspace(0, gate_duration_rx, segment_count)
unitaries_rx = graph.time_evolution_operators_pwc(
hamiltonian=hamiltonian_rx, sample_times=sample_times_rx
)[None]
evolved_states_rx = (unitaries_rx @ initial_states_rx)[..., 0]
states_t_rx = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states_rx, evolved_states_rx),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)
# Transmon latitude and deviation from equator for different initial cavity states.
v = graph.real(
graph.density_matrix_expectation_value(
density_matrix=states_t_rx, operator=np.array(pauli_matrices)[:, None, None]
)
)
latitude_rx = graph.arccos(
v[2] / graph.sqrt(graph.sum(v**2, axis=0)), name="latitude_rx"
)
# To avoid the singularity occurring in case of a maximally mixed state, the normalization of the transmon state is omitted if necessary.
latitude_rx_vz = graph.arccos(v[2], name="latitude_rx_vz")
latitude_cost = graph.sum(graph.abs(latitude_rx_vz - np.pi / 2)) / (
len(cardinal_states_c) ** 2
)
latitude_cost.name = "latitude_cost"
# Combining the pulses for the full gate sequence.
pulse_list_c = [
graph.constant_pwc(0, gate_duration_h),
graph.pwc(**result_c_parity["output"]["drive_c"]),
graph.constant_pwc(0, gate_duration_rx),
graph.pwc(**result_c_parity["output"]["drive_c"]),
graph.constant_pwc(0, gate_duration_h),
]
pulse_list_delta_c = [
graph.constant_pwc(0, gate_duration_h),
graph.constant_pwc(
result_c_parity["output"]["delta_c"]["value"], gate_duration_c_parity
),
graph.constant_pwc(0, gate_duration_rx),
graph.constant_pwc(
result_c_parity["output"]["delta_c"]["value"], gate_duration_c_parity
),
graph.constant_pwc(0, gate_duration_h),
]
pulse_list_t = [
graph.pwc(**result_h_1["output"]["drive_t"]),
graph.constant_pwc(0, gate_duration_c_parity),
drive_t,
graph.constant_pwc(0, gate_duration_c_parity),
graph.pwc(**result_h_2["output"]["drive_t"]),
]
pulse_list_delta_t = [
graph.constant_pwc(result_h_1["output"]["delta_t"]["value"], gate_duration_h),
graph.constant_pwc(0, gate_duration_c_parity),
graph.constant_pwc(delta_t, gate_duration_rx),
graph.constant_pwc(0, gate_duration_c_parity),
graph.constant_pwc(result_h_2["output"]["delta_t"]["value"], gate_duration_h),
]
drive_c_seq = graph.time_concatenate_pwc(pulse_list_c, name="drive_c_seq")
delta_c_seq = graph.time_concatenate_pwc(pulse_list_delta_c, name="delta_c_seq")
drive_t_seq = graph.time_concatenate_pwc(pulse_list_t, name="drive_t_seq")
delta_t_seq = graph.time_concatenate_pwc(pulse_list_delta_t, name="delta_t_seq")
# Setup of the Hamiltonian for the gate sequence.
if robust:
amplitude_error_pwc = graph.constant_pwc(
amplitude_errors_optimization,
duration=gate_duration_tot,
batch_dimension_count=1,
)
h_drive_seq = (
(1 + amplitude_error_pwc)
* graph.hermitian_part(drive_c_seq * graph.adjoint(a) @ b)
+ delta_c_seq * n_a
+ (1 + amplitude_error_pwc)
* graph.hermitian_part(drive_t_seq * graph.adjoint(t))
+ delta_t_seq * n_t
)
else:
h_drive_seq = (
graph.hermitian_part(drive_c_seq * graph.adjoint(a) @ b)
+ delta_c_seq * n_a
+ graph.hermitian_part(drive_t_seq * graph.adjoint(t))
+ delta_t_seq * n_t
)
hamiltonian_seq = h_drift + h_drive_seq
# Initial and target states of the gate sequence.
initial_state_t = np.array([1, 0, 0])
initial_states = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t[:, None],
]
),
(len(cardinal_states_c) ** 2, 1, 1, -1, 1),
)
target_states = (rzz_tot @ initial_states)[:, 0, :, :, 0]
# Time evolution of the gate sequence.
sample_times = np.linspace(0, gate_duration_tot, 7 * segment_count)
unitaries = graph.time_evolution_operators_pwc(
hamiltonian=hamiltonian_seq, sample_times=sample_times
)[None]
evolved_states = unitaries @ initial_states
# Infidelity of the target states and the evolved states of the gate sequence.
infidelity = graph.sum(
graph.state_infidelity(evolved_states[:, :, -1, :, 0], target_states)
) / (len(cardinal_states_c) ** 2)
if robust:
infidelity /= sample_count_optimization
infidelity.name = "infidelity_seq"
# Calculation of the transmon states during the gate sequence.
if robust:
no_error_idx = int((sample_count_optimization - 1) / 2)
else:
no_error_idx = 0
evolved_states = evolved_states[:, no_error_idx, :, :, 0]
states_t = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states, evolved_states),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)
# Transmon latitude for different initial cavity states during the gate sequence.
v = graph.real(
graph.density_matrix_expectation_value(
density_matrix=states_t, operator=np.array(pauli_matrices)[:, None, None]
)
)
latitude = graph.arccos(v[2] / graph.sqrt(graph.sum(v**2, axis=0)), name="latitude")
latitude_vz = graph.arccos(v[2], name="latitude_vz")
cost = infidelity + 1e-6 * latitude_cost
cost.name = "cost"
output_node_names = [
"drive_c_seq",
"delta_c_seq",
"drive_t_seq",
"delta_t_seq",
"drive_t",
"delta_t",
"latitude",
"latitude_vz",
"infidelity_rx",
"infidelity_seq",
]
return bo.run_optimization(
graph=graph,
cost_node_name="cost",
output_node_names=output_node_names,
optimization_count=10,
run_async=run_async,
)
result_rx = optimize_rx(result_h_1, result_h_2, result_c_parity, run_async=False)
print("Optimized RX gate.")
print(f"Cost: {result_rx['cost']:.3e}")
print(f"Gate infidelity: {result_rx['output']['infidelity_rx']['value']:.3e}")Optimized RX gate.
Cost: 8.847e-06
Gate infidelity: 1.153e-04
After optimizing the pulse
def plot_pulse_sequence(result_rx):
controls = {
"$g$": result_rx["output"]["drive_c_seq"],
r"$\Delta_{BS}$": result_rx["output"]["delta_c_seq"],
r"$\epsilon$": result_rx["output"]["drive_t_seq"],
r"$\Delta_\epsilon$": result_rx["output"]["delta_t_seq"],
}
fig, _ = plt.subplots()
fig.text(0.175, 0.035, "$H$")
fig.text(0.25, 0.035, "controlled joint parity")
fig.text(0.5, 0.035, r"$X_\Theta$")
fig.text(0.575, 0.035, "controlled joint parity")
fig.text(0.825, 0.035, "$H$")
fig.add_artist(plt.Line2D([0.15, 0.875], [0.055, 0.055]))
qv.plot_controls(controls, polar=False, figure=fig)
plot_pulse_sequence(result_rx)

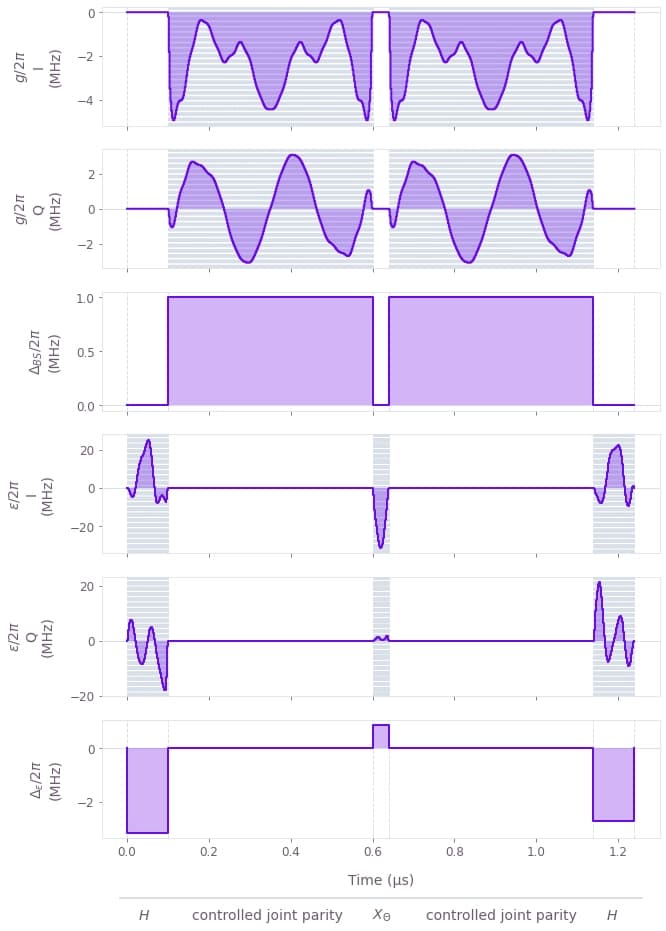

The above figure shows the full optimized pulse sequence. We now evaluate the infidelity of this pulse sequence for the cavities and the transmon ancilla which, in the closed system, can be attributed to coherent errors.
print(
f"Infidelity of the full gate sequence: {result_rx['output']['infidelity_seq']['value']:.3e}"
)Infidelity of the full gate sequence: 7.209e-06
One of the objectives of the optimization was to fulfill the "equal-latitude condition" during the gate sequence, that is, making the transmon latitude independent of the cavity state.
def plot_latitude(result_rx):
plt.figure()
sample_times = np.linspace(0, gate_duration_tot * 1e6, 7 * segment_count)
latitude = result_rx["output"]["latitude_vz"]["value"]
labels = [r"$|00\rangle$", r"$|01\rangle$", r"$|10\rangle$", r"$|11\rangle$"]
for i, j in enumerate([0, 1, len(cardinal_states_c), len(cardinal_states_c) + 1]):
plt.plot(sample_times, latitude[j] * 180 / np.pi, label=labels[i])
plt.xlabel(r"Time ($\mu$s)")
plt.ylabel("Latitude")
plt.yticks(
[0, 45, 90, 135, 180], [r"0", r"$\pi/4$", r"$\pi/2$", r"$3\pi/4$", r"$\pi$"]
)
plt.legend(title="Cavity states", bbox_to_anchor=(0.6, 0.48))
plt.title("Transmon latitude for different initial cavity states")
plt.show()
plot_latitude(result_rx)
In the above plot, we see that the transmon latitude is independent of the cavity state for the majority of the protocol. Only during the
Optimization of noise robust pulses
We now take the susceptibility of the optimized pulses to errors in the control amplitudes as an exemplary noise source into account explicitly. To that end, we include quasi-static error terms in the Hamiltonian according to
with the relative amplitude errors
# First Hadamard gate.
job_h_1_robust = optimize_hadamard(initial_state_t_h_1, run_async=True, robust=True)
# Second Hadamard gate.
job_h_2_robust = optimize_hadamard(initial_state_t_h_2, run_async=True, robust=True)
# Ancilla-controlled joint parity gate.
job_c_parity_robust = optimize_c_parity(run_async=True, robust=True)
# RX gate.
result_h_1_robust = job_h_1_robust.get_result()
result_h_2_robust = job_h_2_robust.get_result()
result_c_parity_robust = job_c_parity_robust.get_result()
print("Optimized first Hadamard gate.")
print(f"Cost: {result_h_1_robust['cost']:.3e}")
print(f"Gate infidelity: {result_h_1_robust['output']['infidelity']['value']:.3e}\n")
print("Optimized second Hadamard gate.")
print(f"Cost: {result_h_2_robust['cost']:.3e}")
print(f"Gate infidelity: {result_h_2_robust['output']['infidelity']['value']:.3e}\n")
print("Optimized ancilla-controlled joint parity gate.")
print(f"Cost: {result_c_parity_robust['cost']:.3e}")
print(
f"Gate infidelity: {result_c_parity_robust['output']['infidelity']['value']:.3e}\n"
)
result_rx_robust = optimize_rx(
result_h_1_robust,
result_h_2_robust,
result_c_parity_robust,
run_async=False,
robust=True,
)
print("Optimized RX gate.")
print(f"Cost: {result_rx_robust['cost']:.3e}")
print(f"Gate infidelity: {result_rx_robust['output']['infidelity_rx']['value']:.3e}")Optimized first Hadamard gate.
Cost: 1.773e-04
Gate infidelity: 9.040e-05
Optimized second Hadamard gate.
Cost: 1.461e-04
Gate infidelity: 4.675e-05
Optimized ancilla-controlled joint parity gate.
Cost: 3.344e-04
Gate infidelity: 3.342e-04
Optimized RX gate.
Cost: 2.528e-03
Gate infidelity: 6.213e-05
plot_pulse_sequence(result_rx_robust)

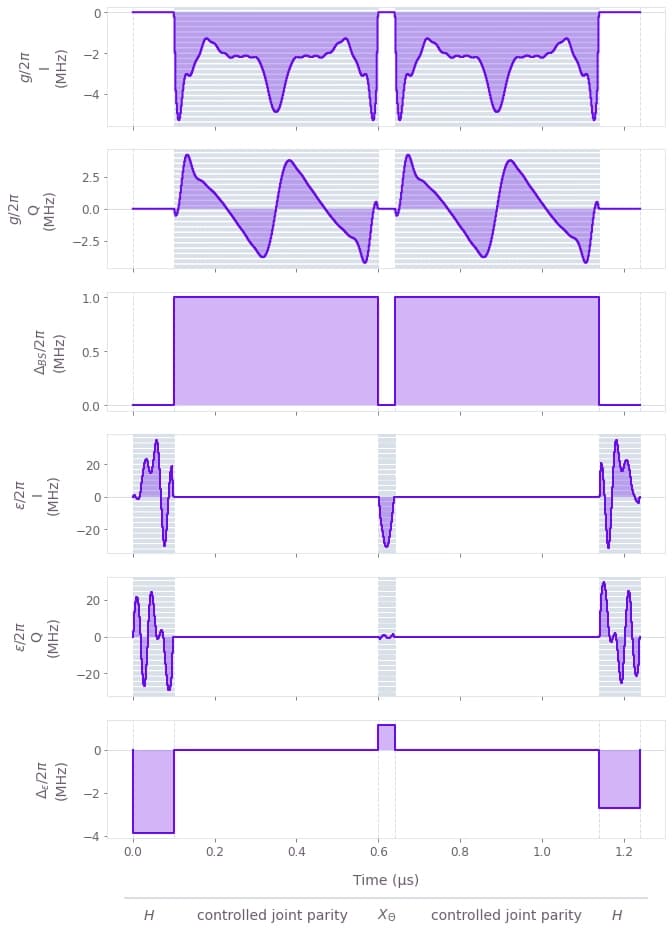

Looking at the optimized pulse sequence shown in the figure above, we see that especially for the Hadamard gates and the controlled joint parity gates, the robust pulses become more complex than the pulses obtained without the robustness criterion.
plot_latitude(result_rx_robust)
Also the transmon latitude shows a more complex behavior during the Hadamard gates than for the default optimization. Nevertheless, only during the
To investigate the robustness of the pulses, we perform a quasi-static scan over the amplitude errors and evaluate the infidelity for the
Here, we assume the same relative amplitude error and the same absolute detuning error for both the beamsplitter and the transmon drive.
def simulate_with_control_errors(
result_rx, amplitude_error, run_async, detuning_error=0
):
graph = bo.Graph()
# Optimized pulses.
drive_c = graph.pwc(**result_rx["output"]["drive_c_seq"])
delta_c = graph.pwc(**result_rx["output"]["delta_c_seq"])
drive_t = graph.pwc(**result_rx["output"]["drive_t_seq"])
delta_t = graph.pwc(**result_rx["output"]["delta_t_seq"])
# Setup of the Hamiltonian.
a, n_a, b, n_b, t, n_t, t_z, _, n_t_e = create_system_operators(
graph, cavity_dim, transmon_dim
)
h_drift = (
-chi / 2 * n_a @ t_z
- k_a / 2 * (n_a @ n_a - n_a)
- k_b / 2 * (n_b @ n_b - n_b)
+ chi_f_prime * (n_a @ n_a - n_a) @ n_t
+ chi_e_prime * (n_a @ n_a - n_a) @ (n_t_e - 2 * n_t)
+ chi_ab * n_a @ n_b
)
h_drive = (
graph.hermitian_part(drive_c * (1 + amplitude_error) * graph.adjoint(a) @ b)
+ (delta_c + detuning_error) * n_a
+ graph.hermitian_part(drive_t * (1 + amplitude_error) * graph.adjoint(t))
+ (delta_t + detuning_error) * n_t
)
hamiltonian = h_drift + h_drive
# Initial states of the gate sequence.
initial_states_c = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
]
),
(len(cardinal_states_c) ** 2, cavity_dim * cavity_dim, 1),
)
target_states_c = (rzz @ initial_states_c)[:, :, 0]
initial_state_t = np.array([1, 0, 0])
initial_states = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t[:, None],
]
),
(len(cardinal_states_c) ** 2, 1, cavity_dim * cavity_dim * transmon_dim, 1),
)
# Time evolution of the gate sequence.
sample_times = np.linspace(0, gate_duration_tot, 7 * segment_count)
unitaries = graph.time_evolution_operators_pwc(
hamiltonian=hamiltonian, sample_times=sample_times
)[None]
evolved_states = (unitaries @ initial_states)[..., 0]
# Infidelity of the target states and the evolved states of the gate sequence for the cavity subspace.
states_c = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states, evolved_states),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[2],
)
fidelity_c = graph.expectation_value(
state=target_states_c, operator=states_c[:, -1]
)
infidelity_c = graph.sum(1 - graph.abs(fidelity_c)) / len(cardinal_states_c) ** 2
infidelity_c.name = "infidelity_c"
# Calculation of the transmon states during the gate sequence.
states_t = graph.partial_trace(
density_matrix=graph.outer_product(evolved_states, evolved_states),
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)
# Gate failure probability.
failure_probability = (
graph.sum(graph.abs(states_t[:, -1, 1, 1]) + graph.abs(states_t[:, -1, 2, 2]))
/ len(cardinal_states_c) ** 2
)
failure_probability.name = "failure_probability"
return bo.execute_graph(
graph=graph,
output_node_names=["infidelity_c", "failure_probability"],
run_async=run_async,
)
# Relative amplitude errors we scan over.
sample_count_evaluation = 55
amplitude_errors_evaluation = np.linspace(-0.1, 0.1, num=sample_count_evaluation)
detuning_error = 20 * 1e3
results = {
"Optimal, no detuning": [],
"Robust, no detuning": [],
"Optimal, detuning": [],
"Robust, detuning": [],
}
job_optimal_no_det = [
simulate_with_control_errors(result_rx, amplitude_error, run_async=True)
for amplitude_error in amplitude_errors_evaluation
]
job_robust_no_det = [
simulate_with_control_errors(
result_rx, amplitude_error, run_async=True, detuning_error=detuning_error
)
for amplitude_error in amplitude_errors_evaluation
]
job_optimal_det = [
simulate_with_control_errors(
result_rx, amplitude_error, run_async=True, detuning_error=detuning_error
)
for amplitude_error in amplitude_errors_evaluation
]
job_robust_det = [
simulate_with_control_errors(
result_rx_robust, amplitude_error, run_async=True, detuning_error=detuning_error
)
for amplitude_error in amplitude_errors_evaluation
]
results["Optimal, no detuning"] = [job.get_result() for job in job_optimal_no_det]
results["Robust, no detuning"] = [job.get_result() for job in job_robust_no_det]
results["Optimal, detuning"] = [job.get_result() for job in job_optimal_det]
results["Robust, detuning"] = [job.get_result() for job in job_robust_det]
results_values = [
[
[result["output"][measure]["value"] for result in res]
for measure in ["infidelity_c", "failure_probability"]
]
for res in results.values()
]
fig, axs = plt.subplots(2, 2, figsize=(12, 8))
fig.suptitle(f"Quasi-static amplitude error scan", y=0.96)
ylabels = ["Gate infidelity", "Gate failure probability"]
bbox_dict = {"facecolor": "white", "edgecolor": "lightgrey", "alpha": 0.8}
titles = ["No detuning", "Detuning 20 kHz"]
for i in range(2):
for j in range(2):
axs[j][i].plot(
amplitude_errors_evaluation, results_values[j * 2 + 1][i], label="robust"
)
axs[j][i].plot(
amplitude_errors_evaluation,
results_values[j * 2][i],
label="optimal,\nnon-robust",
)
axs[j][i].legend()
axs[j][i].set_title(titles[j])
axs[j][i].set_xticks(np.linspace(-0.1, 0.1, num=5))
axs[j][i].set_yscale("log")
axs[j][i].set_ylabel(ylabels[i])
axs[1][i].set_xlabel("Relative amplitude error")
fig.tight_layout()
fig.subplots_adjust(wspace=0.3, hspace=0.2)
plt.show()
The robust pulse sequence outperforms the optimal, non-robust sequence and yields a lower infidelity for the
Open system validation
To assess the performance of the optimized pulse protocols under realistic conditions including incoherent noise, we simulate the
def simulate_open_system(
result_rx,
run_async,
gamma_t=10000,
gamma_phi_t=10000,
cavity_decay=False,
gamma_c=1000,
):
graph = bo.Graph()
# Optimized pulses.
drive_c = graph.pwc(**result_rx["output"]["drive_c_seq"])
delta_c = graph.pwc(**result_rx["output"]["delta_c_seq"])
drive_t = graph.pwc(**result_rx["output"]["drive_t_seq"])
delta_t = graph.pwc(**result_rx["output"]["delta_t_seq"])
# Setup of the Hamiltonian.
a, n_a, b, n_b, t, n_t, t_z, t_e, n_t_e = create_system_operators(
graph, cavity_dim, transmon_dim
)
h_drift = (
-chi / 2 * n_a @ t_z
- k_a / 2 * (n_a @ n_a - n_a)
- k_b / 2 * (n_b @ n_b - n_b)
+ chi_f_prime * (n_a @ n_a - n_a) @ n_t
+ chi_e_prime * (n_a @ n_a - n_a) @ (n_t_e - 2 * n_t)
+ chi_ab * n_a @ n_b
)
h_drive = (
graph.hermitian_part(drive_c * graph.adjoint(a) @ b)
+ delta_c * n_a
+ graph.hermitian_part(drive_t * graph.adjoint(t))
+ delta_t * n_t
)
hamiltonian = h_drive + h_drift
# Decay terms.
lindblad_terms = [(gamma_t, t_e), (gamma_phi_t, n_t_e)]
if cavity_decay:
lindblad_terms.append((gamma_c, a))
lindblad_terms.append((gamma_c, b))
# Initial and target states.
initial_state_t = np.array([1, 0, 0])
initial_states = graph.reshape(
graph.kronecker_product_list(
[
np.array(cardinal_states_c)[:, None, :, None],
np.array(cardinal_states_c)[None, :, :, None],
initial_state_t[:, None],
]
),
(len(cardinal_states_c) ** 2, -1, 1),
)
target_states = (rzz_tot @ initial_states)[..., 0]
initial_dm = graph.outer_product(initial_states[..., 0], initial_states[..., 0])
# Time evolution.
sample_times = np.linspace(0, gate_duration_tot, 7 * segment_count)
propagated_states = graph.density_matrix_evolution_pwc(
initial_density_matrix=initial_dm,
hamiltonian=hamiltonian,
lindblad_terms=lindblad_terms,
sample_times=sample_times,
)
# Evolved transmon states.
states_t = graph.partial_trace(
density_matrix=propagated_states,
subsystem_dimensions=[cavity_dim, cavity_dim, transmon_dim],
traced_subsystems=[0, 1],
)
# Calculate the error-detected infidelity.
projector_g = graph.embed_operators(
(np.array([[1, 0, 0], [0, 0, 0], [0, 0, 0]]), 2),
[cavity_dim, cavity_dim, transmon_dim],
)
p_g = graph.trace(projector_g @ propagated_states[:, -1])
projected_states = (projector_g @ propagated_states[:, -1] @ projector_g) / p_g[
:, None, None
]
fidelity_detected = graph.expectation_value(
state=target_states, operator=projected_states
)
infidelity_detected = (
graph.sum(1 - graph.abs(fidelity_detected)) / len(cardinal_states_c) ** 2
)
infidelity_detected.name = "infidelity_detected"
# Gate failure probability.
failure_probability = (
graph.sum(graph.abs(states_t[:, -1, 1, 1]) + graph.abs(states_t[:, -1, 2, 2]))
/ len(cardinal_states_c) ** 2
)
failure_probability.name = "failure_probability"
return bo.execute_graph(
graph=graph,
output_node_names=["infidelity_detected", "failure_probability"],
run_async=run_async,
)
# Simulation without noise.
result_simulation_default = simulate_open_system(
result_rx, gamma_t=1e-6, gamma_phi_t=1e-6, run_async=False
)
result_simulation_robust = simulate_open_system(
result_rx_robust, gamma_t=1e-6, gamma_phi_t=1e-6, run_async=False
)
print(f"Without noise:")
print(
f"Error-detected infidelity: {result_simulation_default['output']['infidelity_detected']['value']:.3e},",
f"gate failure probability: {result_simulation_default['output']['failure_probability']['value']:.3e} (optimal, non-robust)",
)
print(
f"Error-detected infidelity: {result_simulation_robust['output']['infidelity_detected']['value']:.3e},",
f"gate failure probability: {result_simulation_robust['output']['failure_probability']['value']:.3e} (robust)\n",
)
# Simulation with transmon decay and dephasing.
result_simulation_default = simulate_open_system(result_rx, run_async=False)
result_simulation_robust = simulate_open_system(result_rx_robust, run_async=False)
print("Transmon decay at T_1 = 100 us and transmon dephasing at T_phi = 100 us:")
print(
f"Error-detected infidelity: {result_simulation_default['output']['infidelity_detected']['value']:.3e},",
f"gate failure probability: {result_simulation_default['output']['failure_probability']['value']:.3e} (optimal, non-robust)",
)
print(
f"Error-detected infidelity: {result_simulation_robust['output']['infidelity_detected']['value']:.3e},",
f"gate failure probability: {result_simulation_robust['output']['failure_probability']['value']:.3e} (robust)\n",
)
# Simulation with additional cavity decay.
print("Additional cavity decay at T_1 = 1 ms:")
result_simulation_default = simulate_open_system(
result_rx, cavity_decay=True, run_async=False
)
result_simulation_robust = simulate_open_system(
result_rx_robust, cavity_decay=True, run_async=False
)
print(
f"Gate failure probability: {result_simulation_default['output']['failure_probability']['value']:.3e} (optimal, non-robust)"
)
print(
f"Gate failure probability: {result_simulation_robust['output']['failure_probability']['value']:.3e} (robust)"
)Without noise:
Error-detected infidelity: 9.987e-07, gate failure probability: 6.211e-06 (optimal, non-robust)
Error-detected infidelity: 2.778e-06, gate failure probability: 1.968e-05 (robust)
Transmon decay at T_1 = 100 us and transmon dephasing at T_phi = 100 us:
Error-detected infidelity: 5.274e-05, gate failure probability: 2.319e-02 (optimal, non-robust)
Error-detected infidelity: 5.770e-05, gate failure probability: 2.376e-02 (robust)
Additional cavity decay at T_1 = 1 ms:
Gate failure probability: 2.371e-02 (optimal, non-robust)
Gate failure probability: 2.428e-02 (robust)
We observe that the gate failure probability increases significantly when considering an open system. However, the interesting measure for the open system is the error-detected infidelity, that is, the infidelity of the gate when measuring the transmon in the ground state at the end of the protocol. The error-detected infidelity remains at a very low level even in the presence of decoherence, indicating a very low level of second-order errors that evade detection.
Compared to the results Tsunoda et al. obtain employing a GRAPE-based pulse optimization, without noise, the pulses optimized using Boulder Opal give about 26x lower
use_saved_results = True
gamma_count = 11
gamma_values = np.logspace(3, 5, gamma_count)
if use_saved_results:
file_name = "resources/open_system_parameter_sweep"
with open(file_name, "r+") as file:
res = jsonpickle.decode(file.read())
results_default = res[0]
results_robust = res[1]
else:
jobs_default = [
simulate_open_system(
result_rx, gamma_t=gamma, gamma_phi_t=gamma_phi, run_async=True
)
for gamma_phi in gamma_values
for gamma in gamma_values
]
jobs_robust = [
simulate_open_system(
result_rx_robust, gamma_t=gamma, gamma_phi_t=gamma_phi, run_async=True
)
for gamma_phi in gamma_values
for gamma in gamma_values
]
results_default = [job.get_result() for job in jobs_default]
results_robust = [job.get_result() for job in jobs_robust]def gather_values(results, name):
values = [
results[gamma_count * i + j]["output"][name]["value"]
for i in range(gamma_count)
for j in range(gamma_count)
]
return np.reshape(values, (gamma_count, gamma_count))
plot_data = {
"Error-detected infidelity, default": gather_values(
results_default, "infidelity_detected"
),
"Error-detected infidelity, robust": gather_values(
results_robust, "infidelity_detected"
),
"Gate failure probability, default": gather_values(
results_default, "failure_probability"
),
"Gate failure probability, robust": gather_values(
results_robust, "failure_probability"
),
}
fig, axs = plt.subplots(2, 2, figsize=(10, 10))
fig.subplots_adjust(wspace=0.4, hspace=0.4)
norms = [
LogNorm(vmax=plot_data["Error-detected infidelity, default"].max()),
LogNorm(vmax=plot_data["Gate failure probability, default"].max()),
]
cmap = qv.QCTRL_SEQUENTIAL_COLORMAP.reversed()
for ax, title, norm in zip(
axs.flatten(), plot_data, [x for pair in zip(norms, norms) for x in pair]
):
cax = ax.pcolor(gamma_values, gamma_values, plot_data[title], norm=norm, cmap=cmap)
plt.colorbar(cax, ax=ax)
ax.set_title(title)
ax.set_xscale("log")
ax.set_yscale("log")
ax.set_xlabel(r"$\gamma$ (Hz)")
ax.set_ylabel(r"$\gamma_\phi$ (Hz)")
plt.show()
Evaluating the error-detected gate infidelity and the gate failure probability for a broad range of ancilla decay rates
